Angled flange 90°, PCD 40mm on 28L pipe, 4-hole




Angled flange 90°, PCD 40mm on 28L pipe, 4-hole
Angled flange 90°, PCD 40mm on 28L pipe, 4-hole
- Shipping time:
-
ca. 1-3 days (abroad may vary)
- Stock:
- pieces

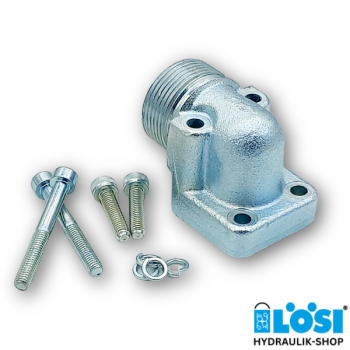

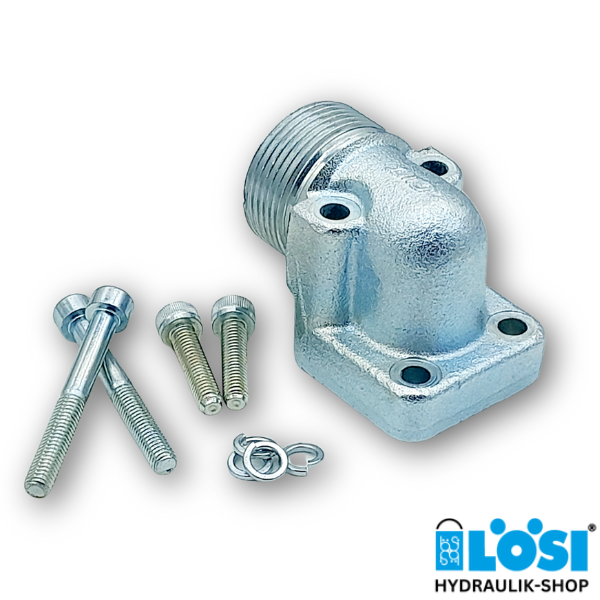

Connection angle flange 90°, LK 40mm on 28L pipe, 100 bar, with O-ring and mounting screws
Technical Data:
- Design: 4-hole flange 90°
- BSP thread: M36x2
- Tube diameter: 28 mm
- Bolt circle: 40 mm
- Max. Pressure [bar]: 100
- Material: Steel
- Mounting screws: 2x M6x25; 2xM6x50
- 4x spring washer
- 1x O-ring NBR
Ref.no.: RBA 40/28
Other sizes available on request.
Do you have questions about our angle flanges? Do you need assistance in selecting the right angle flange? Please contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or via WhatsApp.
