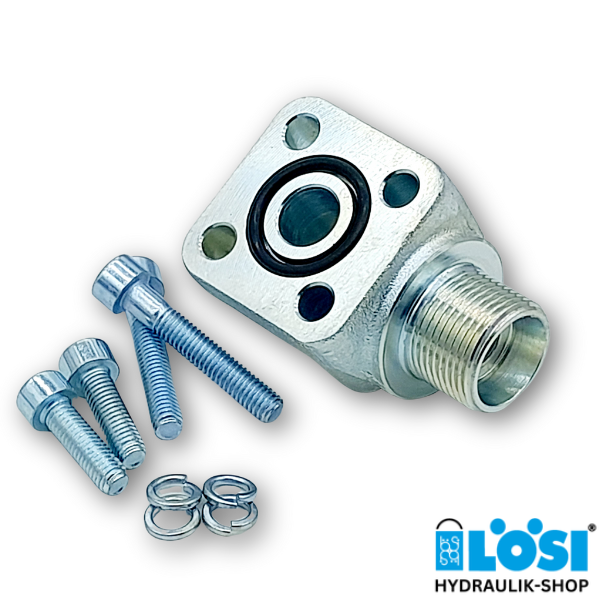

Angled flange 90°, PCD 35mm on 12L pipe, 4-hole
Connection angle flange 90°, LK 35mm on 12L pipe, 300 bar, with O-ring and mounting screws
Technical Data:
- Design: 4-hole flange 90°
- BSP thread: M18x1,5
- Tube diameter: 12 mm
- Bolt circle: 35 mm
- Max. Pressure [bar]: 300
- Material: Steel
- Mounting screws: 2x M6x20; 2xM6x35
- 4x spring washer
- 1x O-ring NBR
Ref.no.: RBA 35/12-M
Other sizes available on request.
