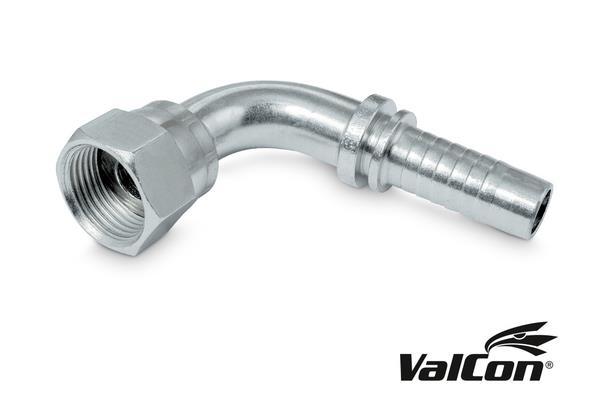

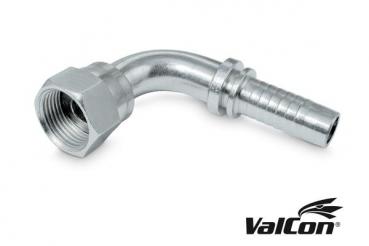

PRESSNIPPEL DKJ-90 DN8 1/2"
PRESSNIPPEL DKJ-90 DN8 G1/2, JIC-Dichtkopf, 74°-Konus mit Überwurfmutter, UN-/UNF-Gewinde
Allgemeine Daten:
- Material: Automatenstahl
- Oberfläche: Cr3
Technische Daten:
- DN: 8
- Size: 05
- Zoll: 5/16
- Anschluss T: 1/2-20
- Abzugsmaß C (mm): 29,0
- d (mm): 5,5
- E (mm): 17,0
- H (mm): 29,0
- L (mm): 58,0
